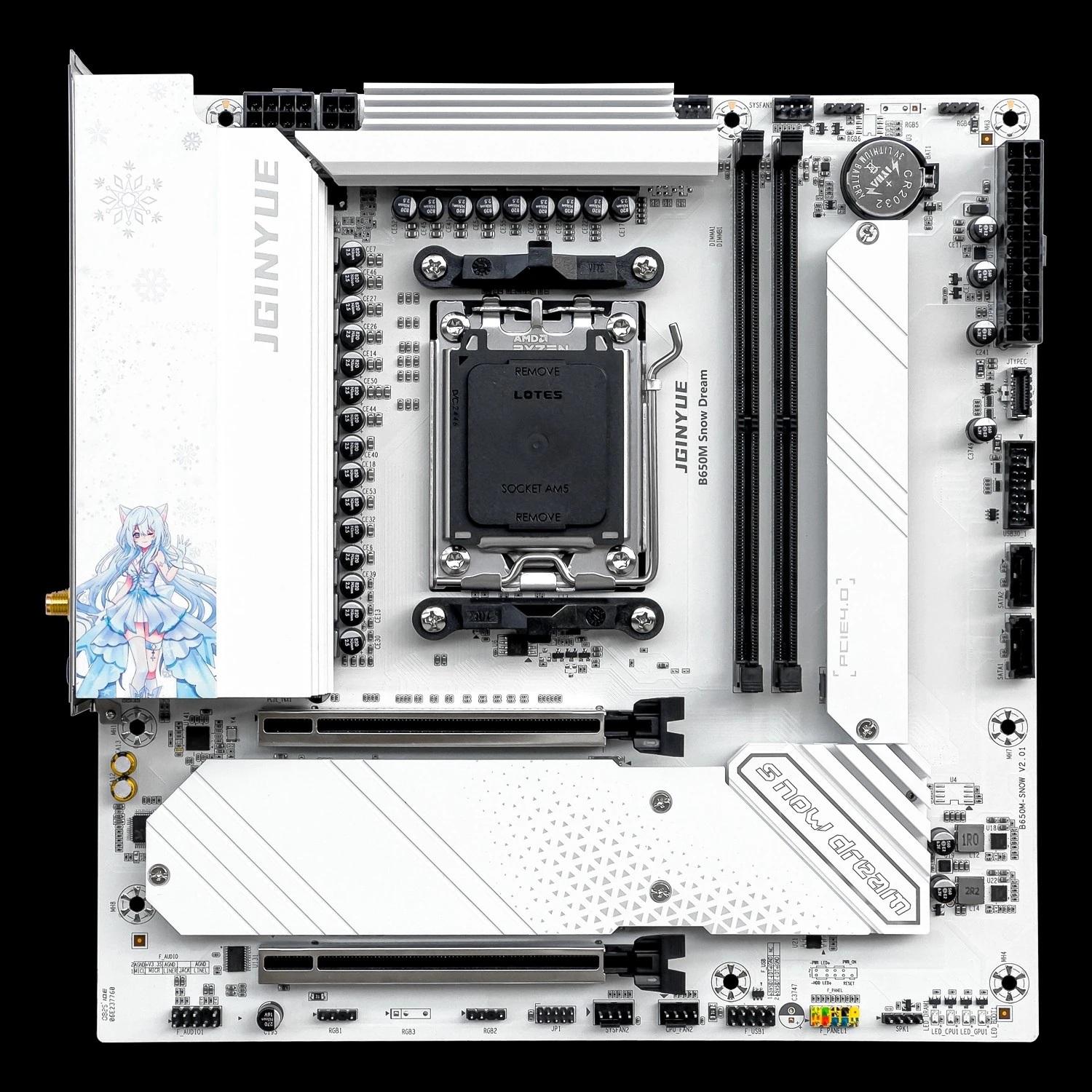

JGINYUE has officially launched its new B650M Snow Dream motherboard, adding a new entry to its AM5 lineup for AMD Ryzen 7000 series processors. Announced yesterday, the board features a distinct all-white PCB design and a Micro-ATX form factor aimed at users looking to build compact systems without compromising too much on expansion options.
The B650M Snow Dream adopts a standard square M-ATX layout and provides two full-length PCIe 4.0 slots. While both are physically full-sized, only the top slot runs at full x16 bandwidth, and the second operates at x4. Additionally, the board includes three PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, providing ample storage expansion for mainstream users.
In terms of memory, the motherboard includes only two DIMM slots and one slot spacing channel (1SPC), supporting DDR5 memory at speeds of 7200 MT/s and beyond when overclocked. While the dual-slot configuration limits maximum memory capacity compared to four-slot alternatives, it should still meet the needs of most gaming or productivity builds focused on speed and stability.
Power delivery is handled by a 19-phase VRM design, although the specific breakdown of power phases has not been detailed. CPU power input is supplied through an 8+4-pin EPS connector setup. JGINYUE has also included a stylized “Snow Dream” emblem on the left VRM heatsink, consistent with the board’s white-themed design.
For networking, the board uses a Realtek RTL8125BG controller, supporting 2.5GbE via a standard RJ45 port. A slot for an M.2 PCIe wireless networking card is also included, but not pre-populated. On the audio side, the board is equipped with a Realtek ALC897 codec, which provides basic onboard sound capabilities suitable for everyday use, though it may fall short for users seeking higher fidelity output.
Rear I/O connectivity includes two USB 3.x Type-A ports, one USB 3.x Type-C port, four USB 2.0 Type-A ports, HDMI and DisplayPort video outputs, one 2.5GbE LAN port, two Wi-Fi antenna connectors, an S/PDIF-out, and two 3.5mm audio jacks. Onboard headers feature a USB 3.x Type-C 5Gbps connector, a 1-to-2 USB 2.0 header, a 1-to-2 USB 3.x header, and four 5V ARGB (4-1 pin) headers for RGB customization.
The JGINYUE B650M Snow Dream appears to be positioned as a visually distinctive and compact platform for AMD’s latest generation processors, with a focus on PCIe 4.0 expansion, high-speed storage, and modest networking and audio features. Pricing and global availability details have yet to be confirmed by the manufacturer.
